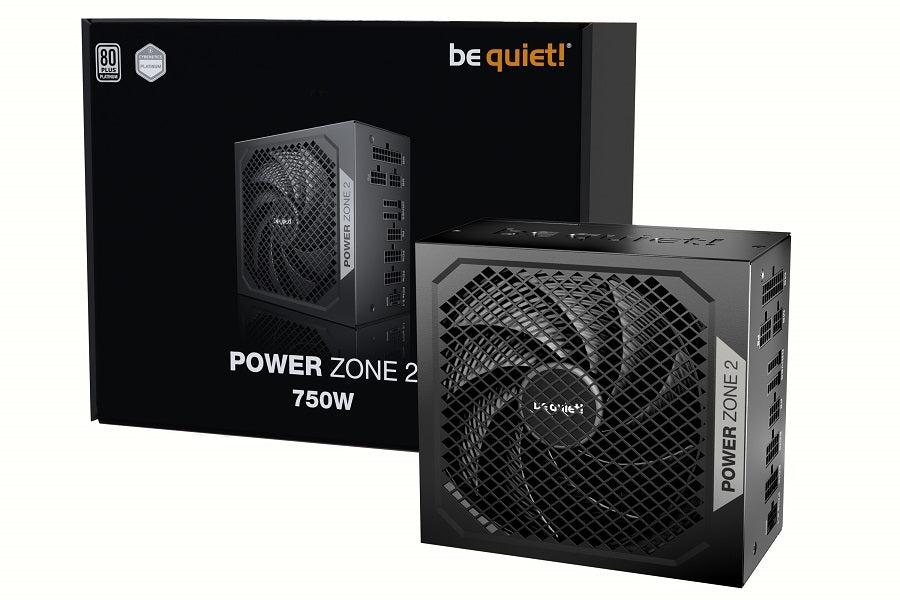

be quiet! POWER ZONE 2 750W 80 PLUS PLATINUM ATX Power Supply

be quiet! Power Zone 2 750W – 80 PLUS Platinum ATX 3.1 Power Supply, PCIe 5.1 Ready, Semi-Passive 140 mm Fan, 10-Year Warranty

The be quiet! Power Zone 2 750W delivers exceptional efficiency, silence, and design innovation. With Platinum certification, semi-passive cooling, and ATX 3.1 compliance, it provides powerful, quiet, and reliable performance for high-end gaming systems.

Key Features:

• 80 PLUS Platinum Certified: Achieves up to 94.2% efficiency with Cybenetics Platinum rating for minimal energy loss and maximum stability
• Semi-Passive Zero-RPM Cooling: The fan stays off under low load, ensuring silent operation and energy efficiency
• Pure Wings 3 Fan: Equipped with a 140 mm rifle-bearing fan designed for quiet performance and extended lifespan
• Post-Shutdown Cooling: Fan continues running 2–5 minutes after shutdown to prevent heat buildup and reduce wear

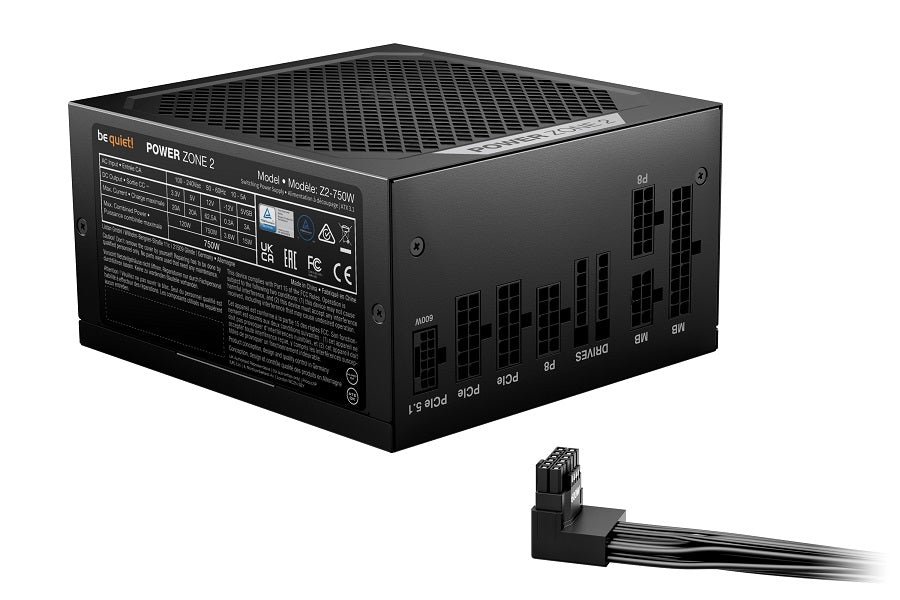

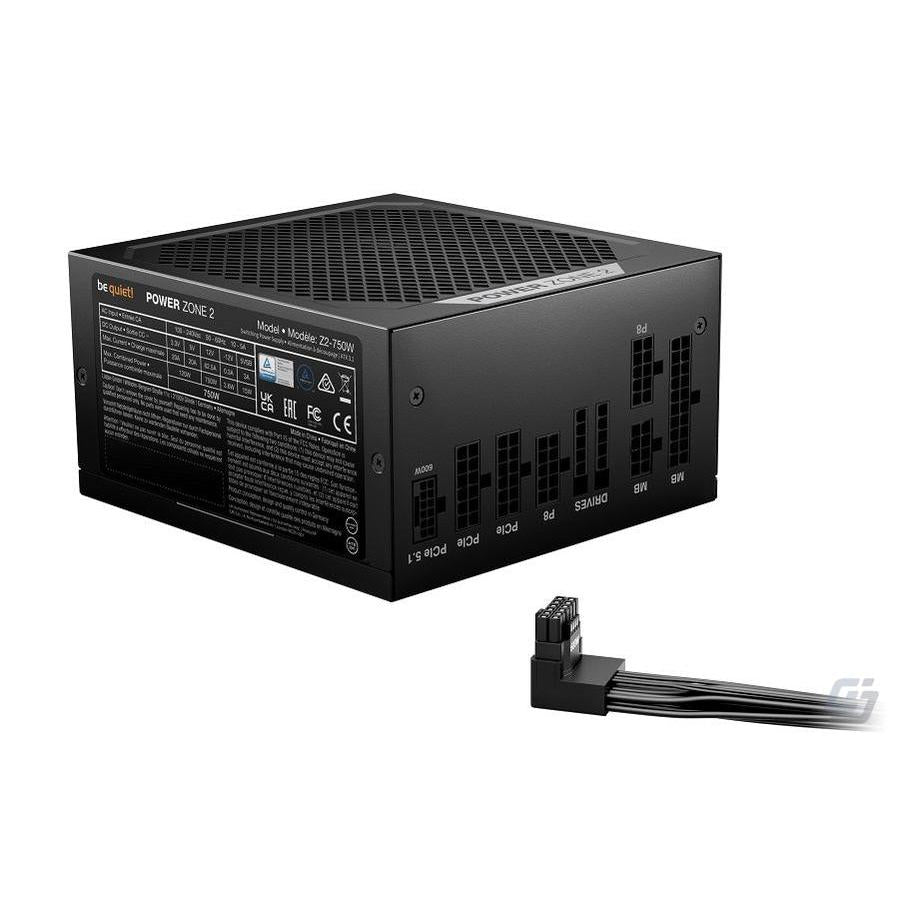

• ATX 3.1 & PCIe 5.1 Ready: Includes a 90° angled 12V-2x6 connector (600W) for next-gen GPUs and three PCIe 6+2 connectors for current graphics cards
• Advanced LLC Topology: Ensures stable voltage regulation and consistent power delivery
• Single High-Performance 12V Rail: Provides clean, reliable power for demanding systems and overclocked components
• Elegant Design: Unique mesh-style housing for a distinctive and professional appearance
• Massive Power Reserves: Handles transient power excursions up to 200% of rated output, ensuring GPU stability under peak load
• Comprehensive Protection: OCP, OVP, UVP, SCP, OTP, OPP, and SIP safeguard your entire system

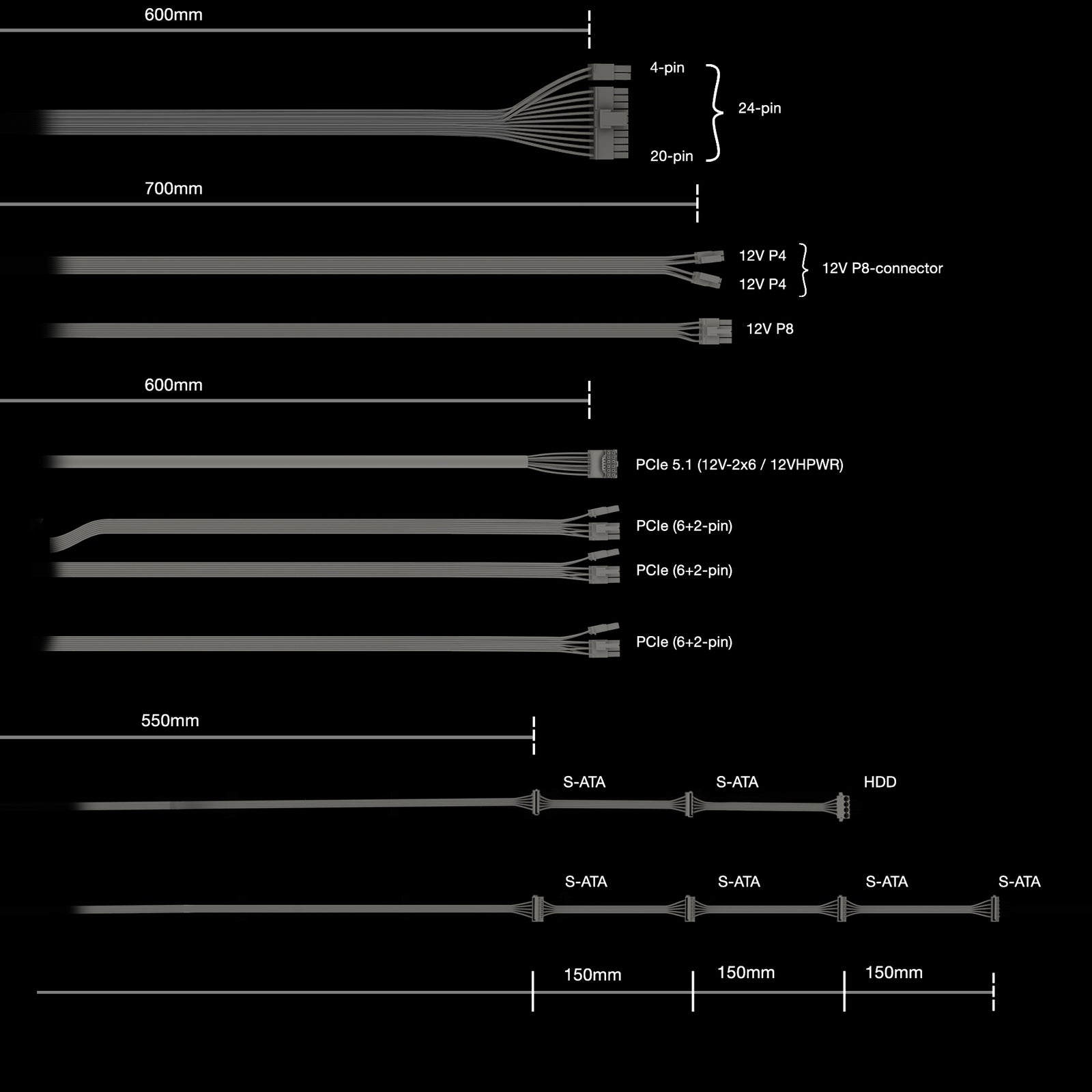

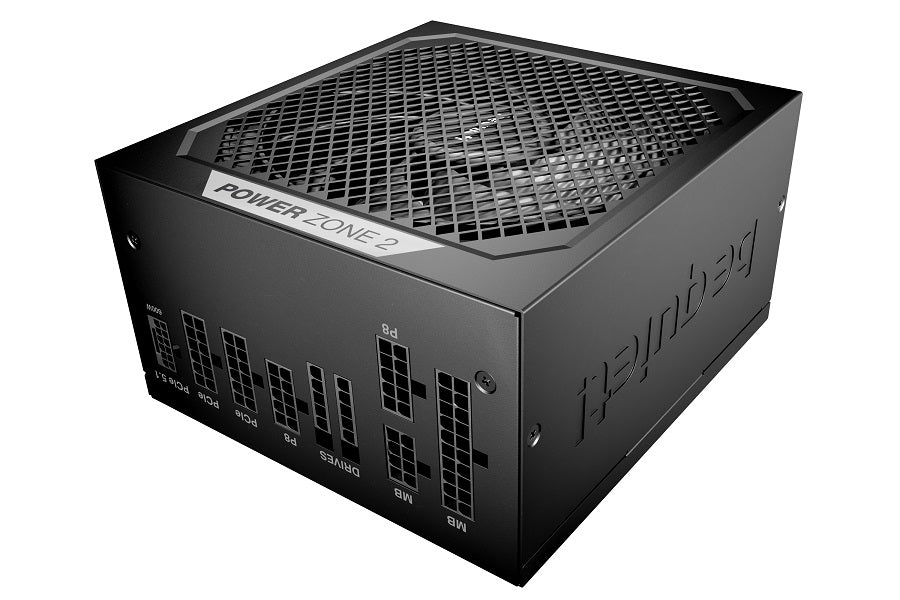

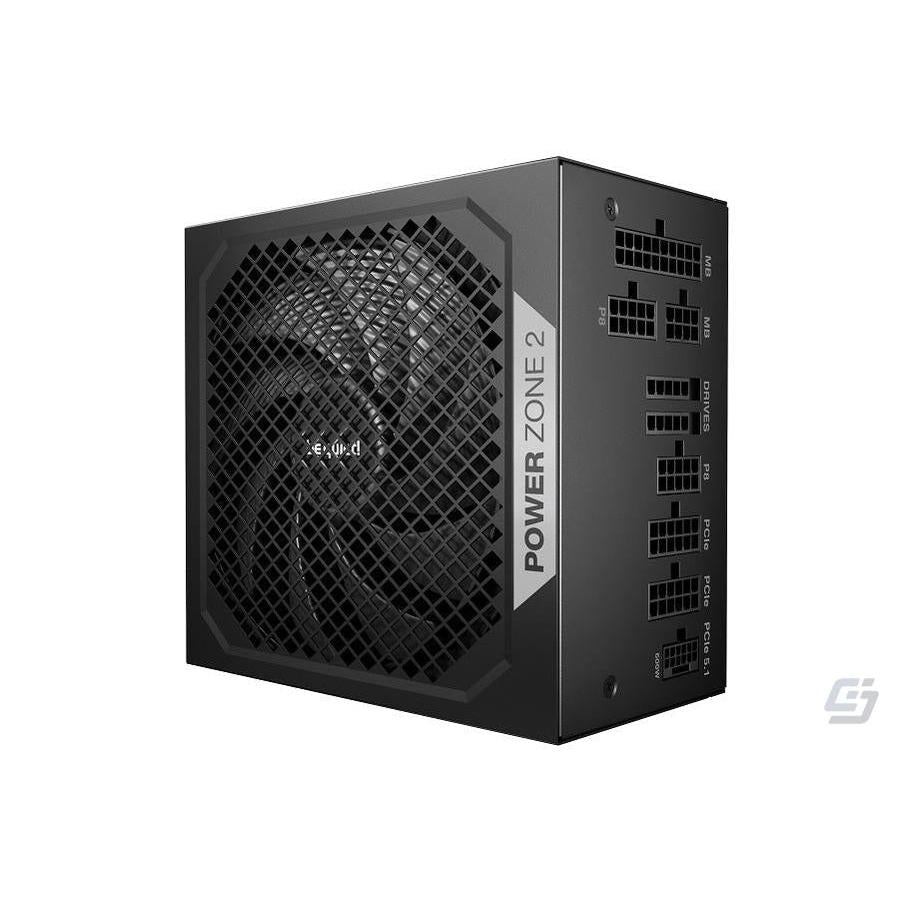

Connectivity:

• ATX (20+4-pin): 1
• CPU (P4+4 / P8 / P4): 3 total
• PCIe 12VHPWR (16-pin): 1 (600W)
• PCIe (6+2-pin): 3
• SATA: 6
• PATA (4-pin): 1

Specifications:

• Model: Power Zone 2 750W (BP006US)
• Continuous Power: 750 W
• Peak Power: 820 W
• Efficiency: 80 PLUS Platinum / Cybenetics Platinum (up to 94.2%)
• Form Factor: ATX 3.1 / EPS 12V v2.92
• Topology: LLC + SR + DC/DC

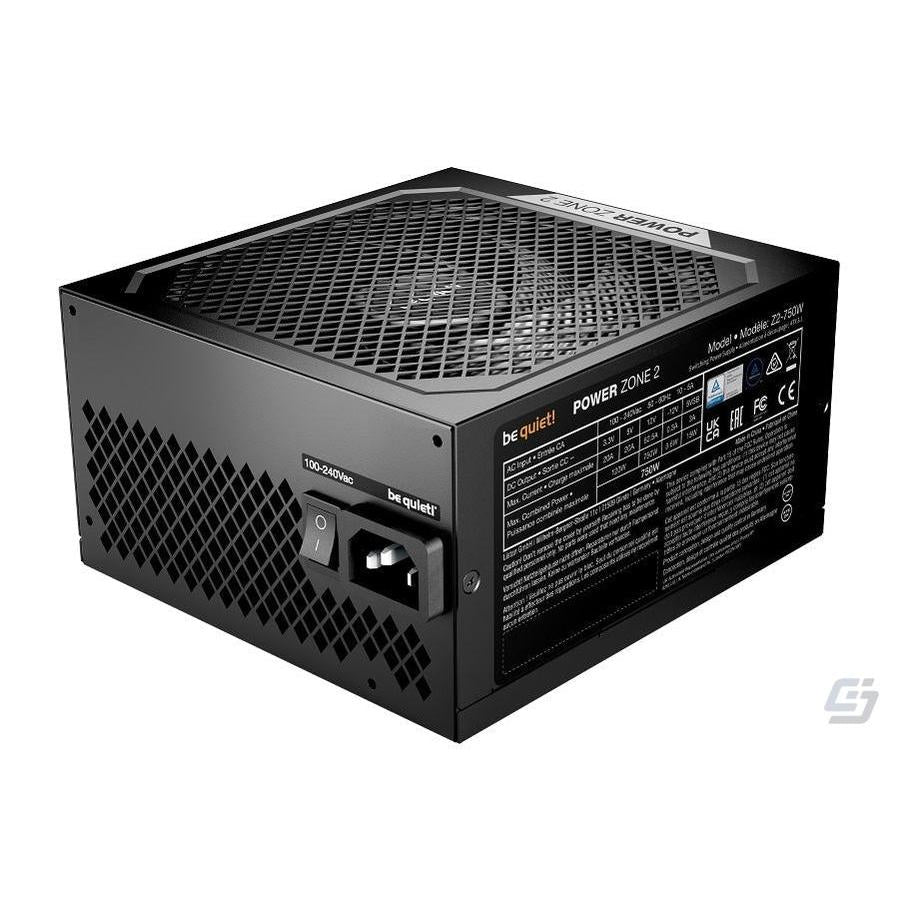

• Input Voltage: 100 – 240 V AC
• Input Frequency: 50 – 60 Hz
• Input Current: 10 / 5 A
• Power Factor (100% Load): >0.98
• Modern Standby: Yes
• Standby Power Consumption: <0.18 W
• Operating Temperature: Up to 40°C
• Average Lifetime: >100,000 hours
• Fan: 140 mm Pure Wings 3 (Rifle Bearing)
• Max Fan Speed: 1,800 RPM

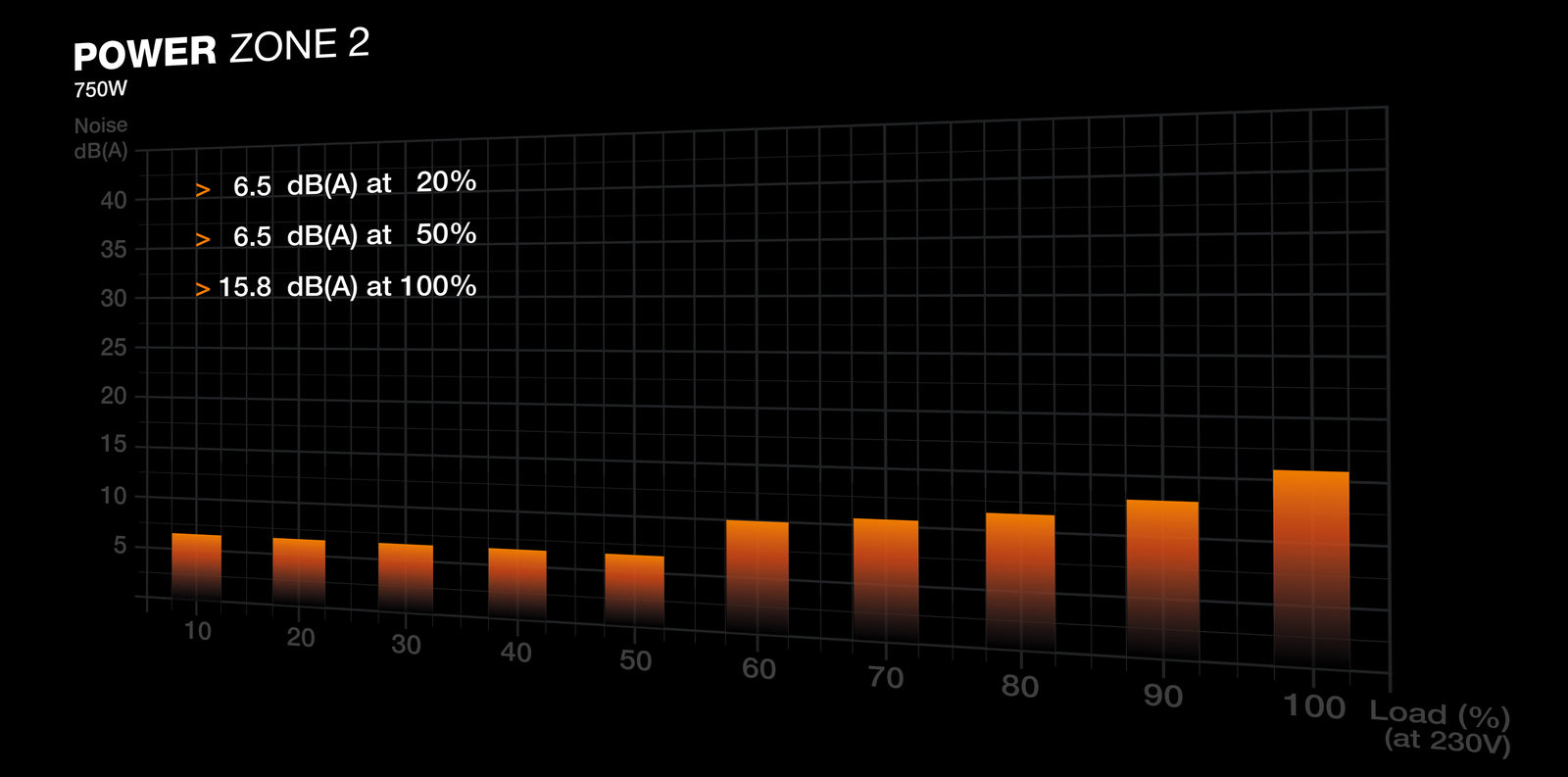

• Noise Level: 6.5 dBA at 10–50% load / 15.8 dBA at full load
• Hold-Up Time (100% Load): 24.5 ms
• Cabling: Fully Modular, Flat and Sleeved
• Cable Length to Motherboard: 60 cm
• Maximum Cable Length: 100 cm
• Dimensions: 7 × 4 × 6 in
• Weight: 7 lbs

Warranty:

• 10 Years

The be quiet! Power Zone 2 750W combines cutting-edge efficiency, whisper-quiet operation, and elegant design. With semi-passive cooling, ATX 3.1 and PCIe 5.1 readiness, and Platinum-rated performance, it’s the perfect power supply for gamers who demand silence and reliability.
